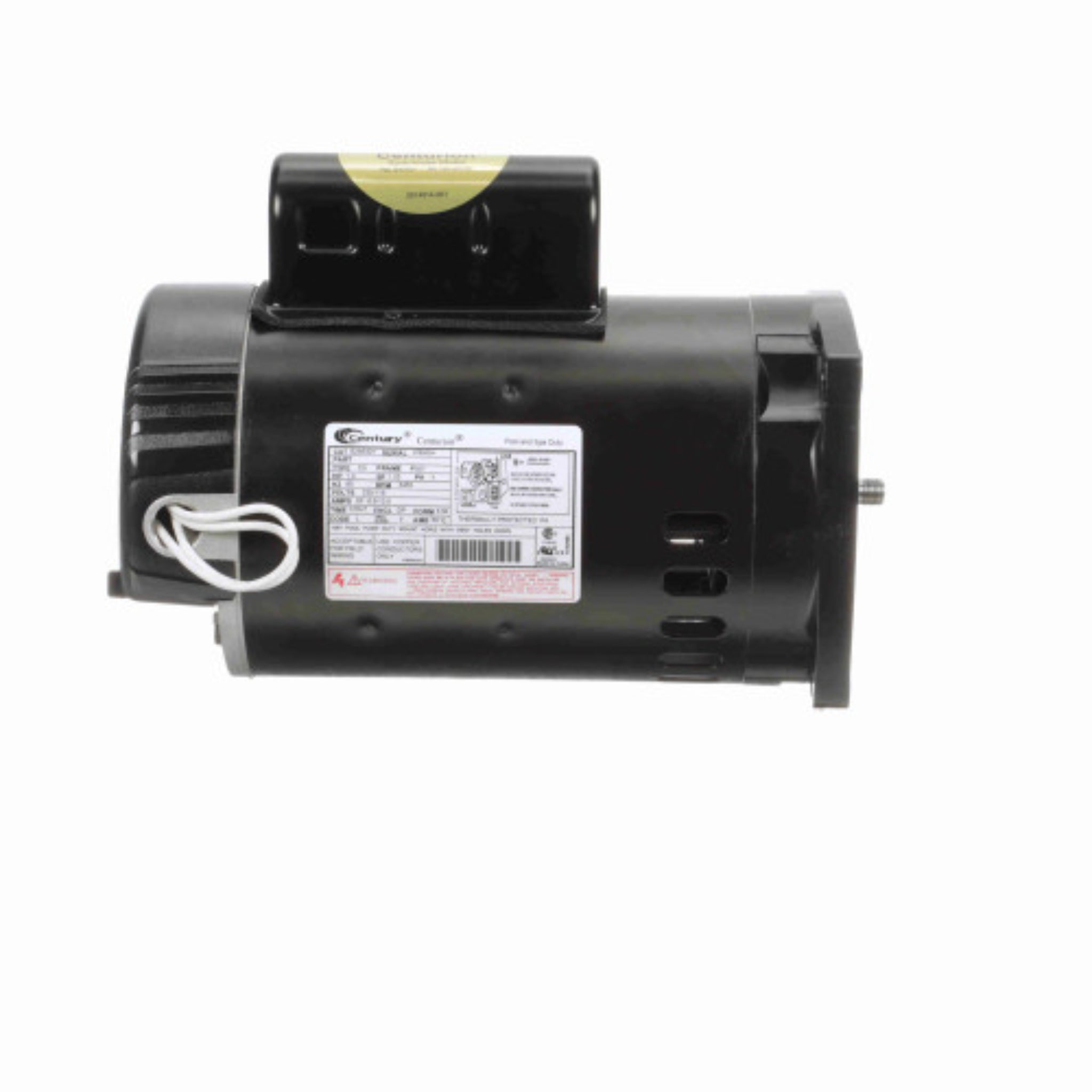

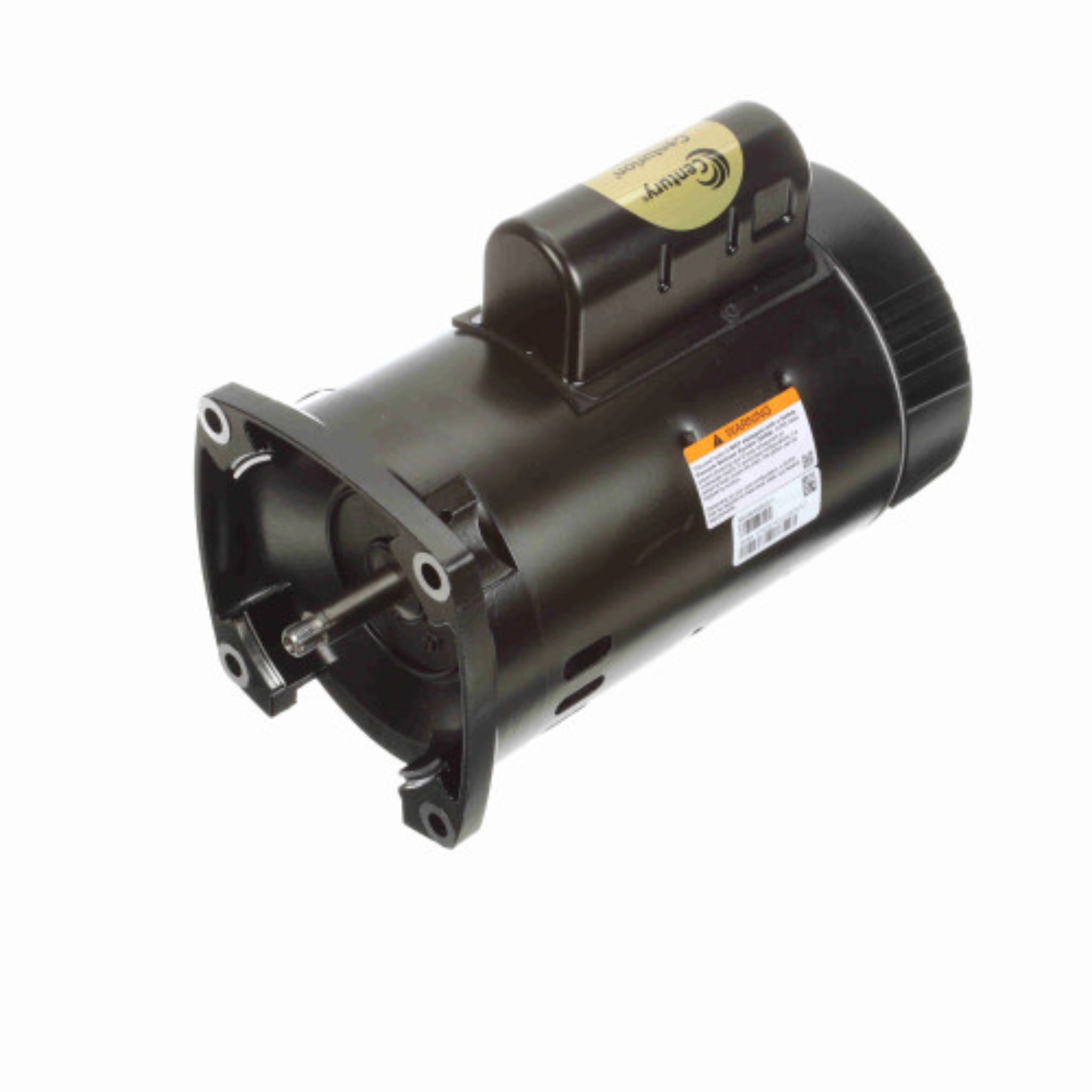

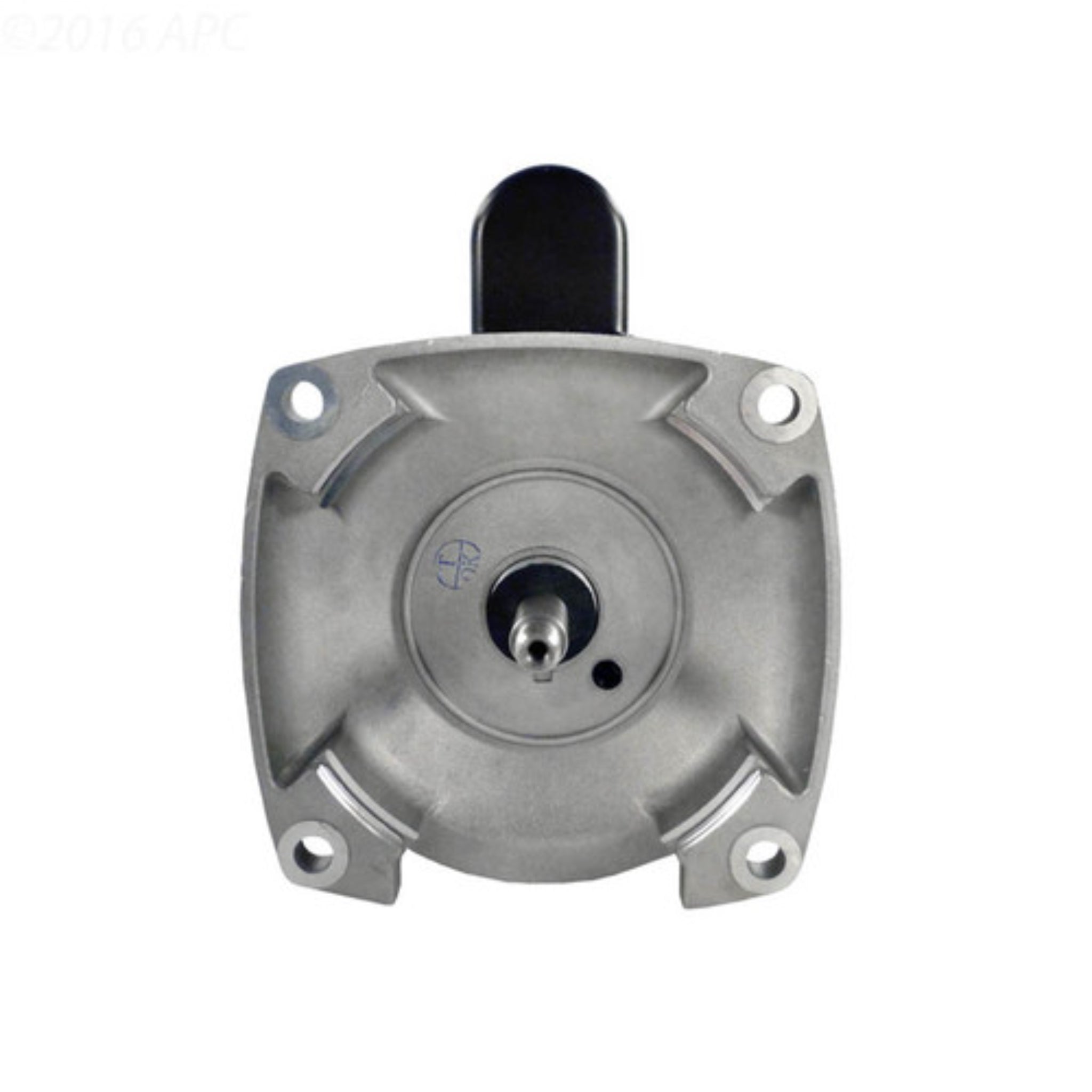

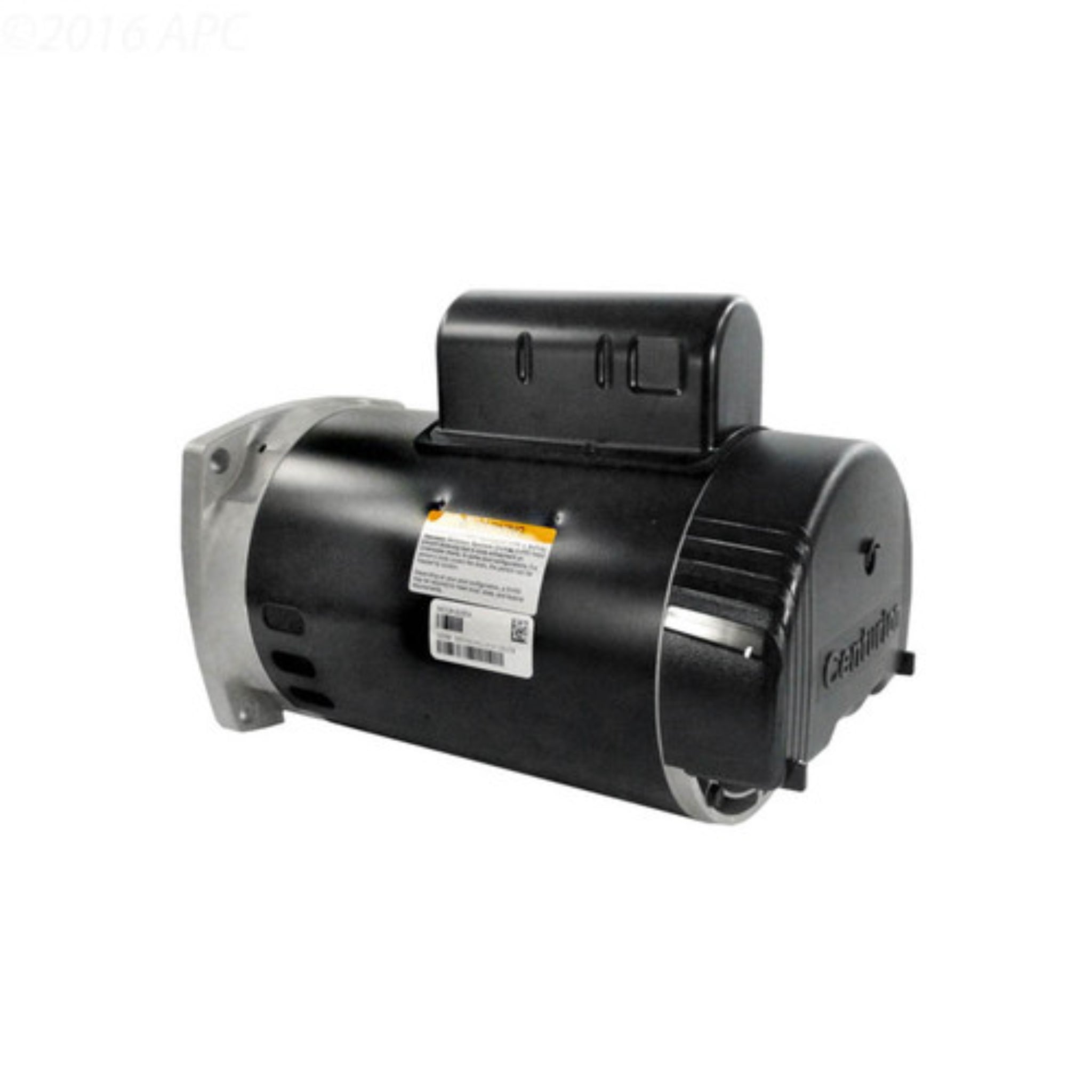

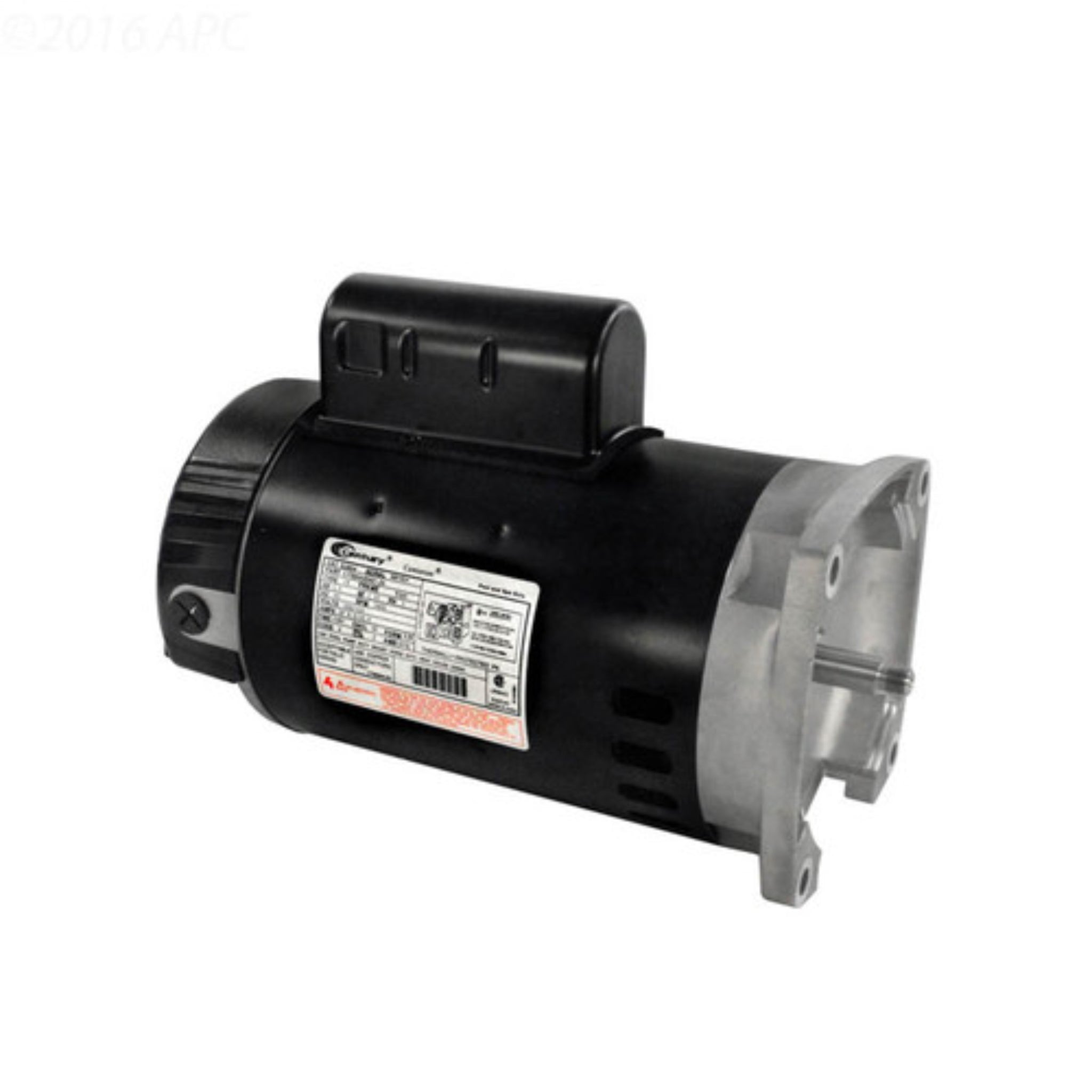

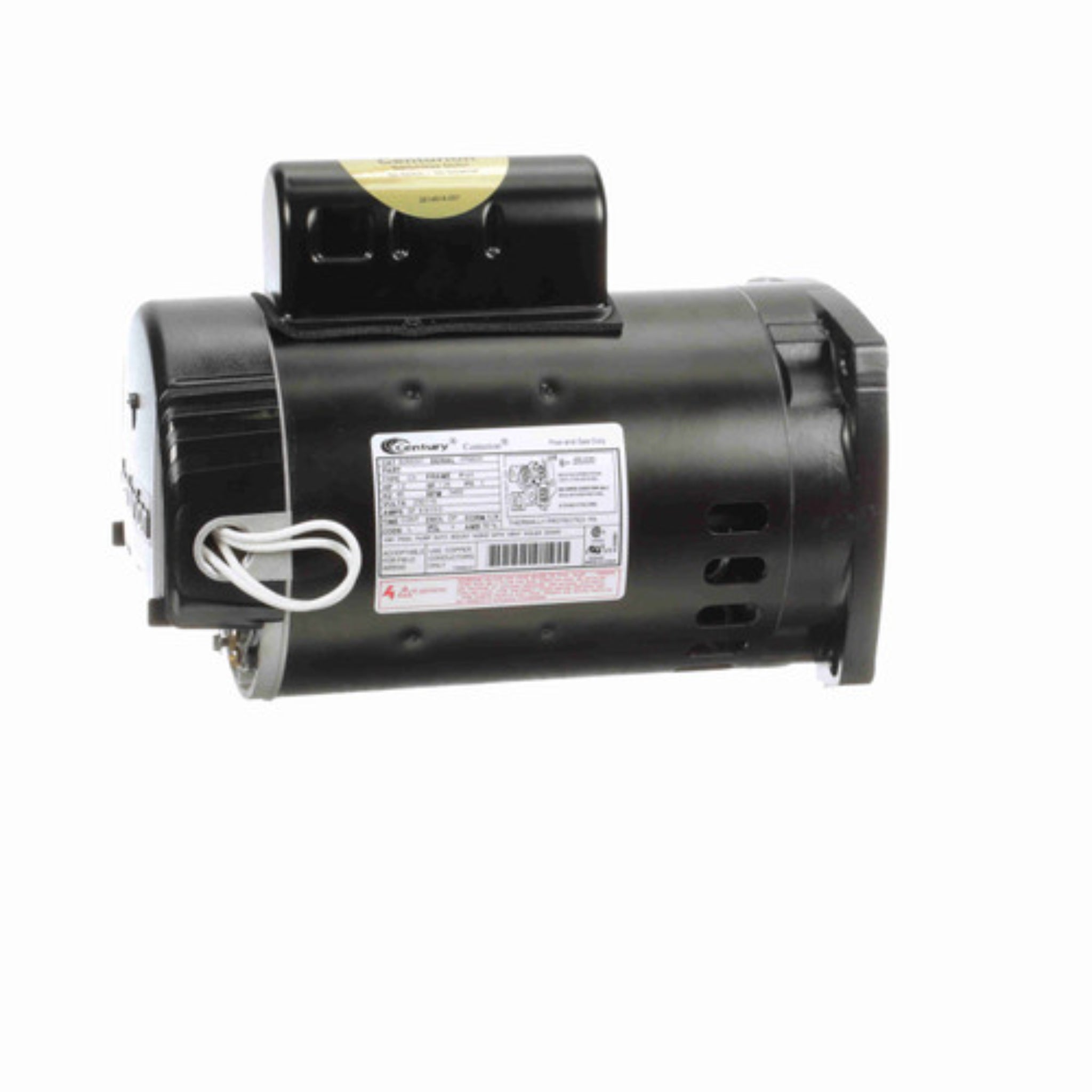

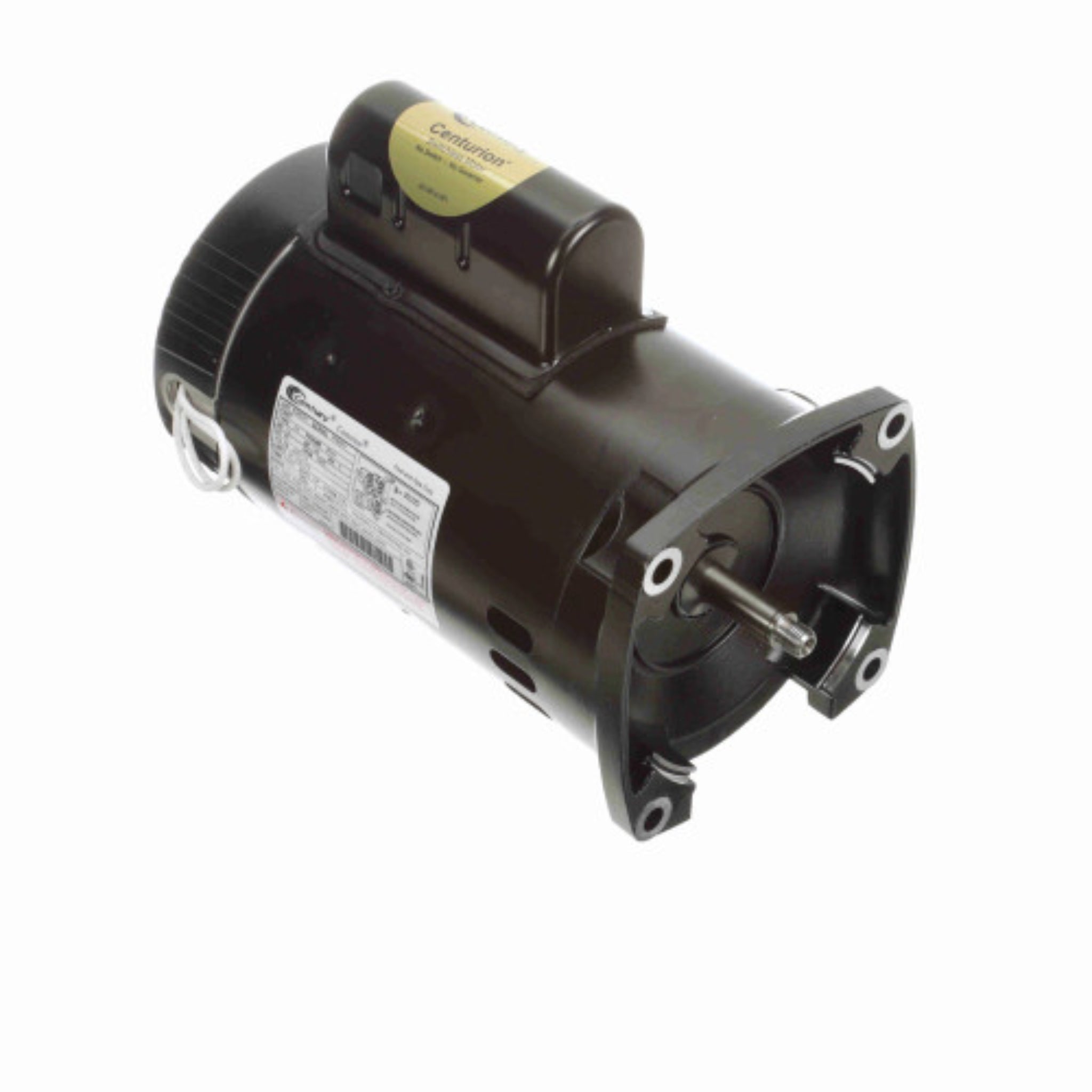

Century Pool Pump Motor 1.5HP | B2854V1
Upgrade your pool and spa experience with the Century Centurion B2854 1.5 HP Square Flange Pool and Spa Pump Motor, available now at EZ Pool & Spa Supply. This high-performance motor is designed to deliver reliable and efficient operation for your pool or spa pump. With its 1.5 HP output and 3450 RPM, this motor provides the power you need to keep your water circulating smoothly. The versatile 115/230 V dual voltage capability and 56Y frame make it compatible with a wide range of pump models, including popular Jandy series pumps.
Built to last, the Century Centurion B2854 features a durable 303 stainless steel shaft and a robust aluminum flange. Its open dripproof enclosure design protects against moisture, while the automatic thermal protection ensures safe operation. The motor's energy-efficient design and continuous duty cycle make it an excellent choice for pool owners looking to optimize their pump's performance while keeping energy costs in check. Trust EZ Pool & Spa Supply to provide you with this top-quality Century motor that will keep your pool running smoothly for years to come.
Features
- Switchless
- Low service factor
- Energy efficient
- 1/2-20 UNF-2A RH threaded shaft
Specifications
| Ambient Temperature | 50 deg C |
| Bearing Type | Ball |
| Brand | Regal Beloit |
| Diameter | 6-1/2 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Design | Open Dripproof |
| Finish Color | Black |
| Flange Material | Aluminum |
| Flange Type | Square |
| Frame | 56Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 16/8 A |
| HP | 1.5 |
| Insulation Class | B |
| Item | Pool and Spa Pump Motor |
| Motor Design | PSC |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | C-Face, No Base |
| Overall Length | 12.80 Inch |
| Phase | 1-Phase |
| RPM | 3450 |
| Series | Centurion® |
| Service Factor | 1.10 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Length | 7/16 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL 1081 Approved, CSA Certified |
| Sub Brand | Century® |
| Thrust Horsepower | 1.65 |
| Type | Up-Rated, CX |
| Voltage Rating | 115/230 V |
Used On
- Jandy PlusHP Full Rate Pump
- Jandy FloPro Medium Head Pump
- Jandy 1.5HP Stealth Series Pump Parts, SHPF1.5
- Jandy FloPro Medium Head Up-Rated Parts, FHPM1.5
- Jandy WaterFeature Series Pump
